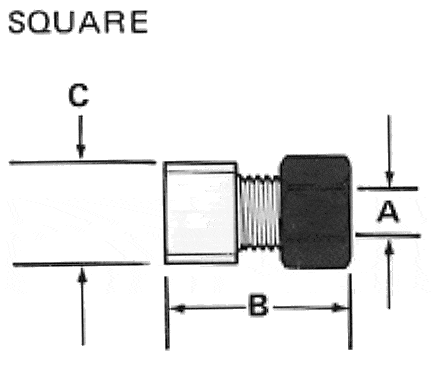

30 – Tubing Cap
|
FRACTIONAL
|
|||
|
PART NO.
|
TUBE O.D.
“A” |
“B”
|
SQUARE
“C” |
|
30F2 |
1/8″ |
.90″ |
1/2″ |
|
30F3 |
3/16 |
.90 |
1/2 |
|
30F4 |
1/4 |
.97 |
1/2 |
|
30F5 |
5/16 |
.97 |
9/16 |
|
30F6 |
3/8 |
1.07 |
5/8 |
|
30F8 |
1/2 |
1.25 |
3/4 |
|
30F10 |
5/8 |
1.60 |
1 |
|
30F12 |
3/4 |
1.80 |
1-1/4 |
|
30F16 |
1 |
1.80 |
1-1/2 |
|
METRIC
|
|||
|
PART NO.
|
TUBE O.D.
“A” |
“B”
|
SQUARE
“C” |
|
30M3 |
3mm |
23mm |
12mm |
|
30M4 |
4 |
23 |
12 |
|
30M6 |
6 |
25 |
12 |
|
30M8 |
8 |
25 |
14 |
|
30M10 |
10 |
27 |
16 |
|
30M12 |
12 |
32 |
19 |
|
30M14 |
14 |
38 |
22 |
|
30M19 |
19 |
46 |
32 |
|
30M26 |
26 |
46 |
38 |
