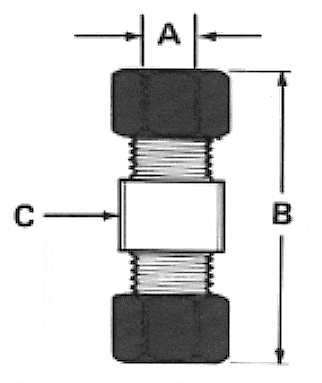

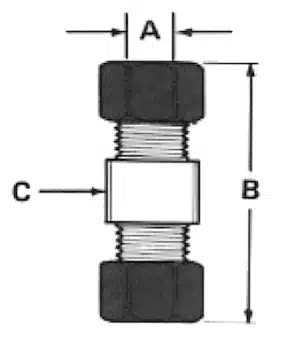

01 – Straight Union
|
Fractional
|
|||
|
Part No.
|
Tube O.D. “A” (Type)
|
“B”
|
Square “C”
|
|
01F2
|
1/8″
|
1.50″
|
7/16″
|
|
01F3
|
3/16
|
1.50
|
7/16
|
|
01F4
|
1/4
|
1.75
|
1/2
|
|
01F5
|
5/16
|
1.75
|
1/2
|
|
01F6
|
3/8
|
1.95
|
5/8
|
|
01F8
|
1/2
|
2.10
|
3/4
|
|
01F10
|
5/8
|
2.70
|
1
|
|
01F12
|
3/4
|
3.10
|
1
|
|
01F16
|
1
|
3.10
|
1-1/4
|
|
Metric
|
|||
|
Part No.
|
Tube O.D. “A” (Type)
|
“B”
|
Square “C”
|
|
01M3
|
3mm
|
38mm
|
11mm
|
|
01M4
|
4
|
38
|
11
|
|
01M6
|
6
|
44
|
12
|
|
01M8
|
8
|
44
|
13
|
|
01M9
|
9
|
50
|
16
|
|
01M10
|
10
|
50
|
16
|
|
01M12
|
12
|
53
|
19
|
|
01M14
|
14
|
61
|
19
|
|
01M19
|
19
|
79
|
26
|
|
01M26
|
26
|
79
|
32
|
