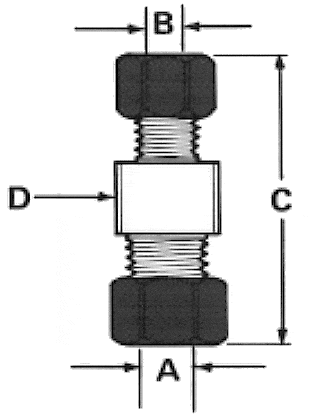

02 – Straight Reducer Union
|
Fractional
|
||||
|
Part No.
|
Tube O.D.
|
“C”
|
Square
“D” |
|
|
“A”
|
“B”
|
|||
|
02F42 |
1/4″ |
1/8″ |
1.62″ |
1/2″ |
|
02F43 |
1/4 |
3/16 |
1.62 |
1/2 |
| 02F54 |
5/16
|
1/4
|
1.75
|
1/2
|
|
02F64 |
3/8 |
1/4 |
1.85 |
1/2 |
|
02F65 |
3/8 |
5/16 |
1.85 |
1/2 |
|
02F84 |
1/2 |
1/4 |
1.92 |
3/4 |
|
02F85 |
1/2 |
5/16 |
1.92 |
3/4 |
|
02F86 |
1/2 |
3/8 |
2.02 |
3/4 |
|
02F108 |
5/8 |
1/2 |
2.27 |
1 |
|
02F124 |
3/4 |
1/4 |
2.37 |
1 |
| 02F128 |
3/4
|
1/2
|
2.65
|
1
|
| 02F1610 |
1
|
5/8
|
2.90
|
1-1/4
|
|
02F1612 |
1 |
3/4 |
3.10 |
1-1/4 |
|
Metric
|
||||
|
Part No.
|
Tube O.D.
|
“C”
|
Square “D”
|
|
|
“A”
|
“B”
|
|||
| 02M63 |
6mm
|
3mm
|
41mm
|
12mm
|
| 02M64 |
6
|
4
|
41
|
12
|
| 02M84 |
8
|
4
|
46
|
13
|
|
02M86 |
8 |
6 |
44 |
13 |
|
02M106 |
10 |
6 |
47 |
16 |
|
02M108 |
10 |
8 |
47 |
16 |
|
02M126 |
12 |
6 |
49 |
19 |
|
02M128 |
12 |
8 |
49 |
19 |
|
02M1210 |
12 |
10 |
51 |
19 |
| 02M1510 B.T. |
15
|
10
|
54
|
22
|
| 02M186 B.T. |
18
|
6
|
60
|
26
|
|
02M1812 B.T. |
18 |
12 |
62 |
1″ |
|
02M1814 B.T. |
18 |
14 |
65 |
1″ |
| 02M1910 B.T. |
19
|
10
|
65
|
26
|
| 02M1912 |
19
|
12
|
67
|
26
|
|
02M1914 B.T. |
19 |
14 |
65 |
1″ |
|
02 Series: Fractional / Metric
|
||||
|
A
|
B
|
C
|
D
|
|
|
02F4M4
|
1/4″
|
4mm
|
43mm
|
12mm
|
|
02F4M6
|
1/4″
|
6mm
|
45mm
|
12mm
|
|
02M4F2
|
4mm
|
1/8″
|
41mm
|
12mm
|
|
02M6F2
|
6mm
|
1/8″
|
43mm
|
12mm
|
| 02M9F4 |
9mm
|
1/4″
|
49mm
|
16mm
|
| 02M10F2 |
10mm
|
1/8″
|
46mm
|
16mm
|
| 02M10F4 |
10mm
|
1/4″
|
48mm
|
16mm
|
| 02M10F6 |
10mm
|
3/8″
|
49mm
|
16mm
|
| 02M12F4 |
12mm
|
1/4″
|
49mm
|
19mm
|
|
02 Series Special Compression Fittings with Straight Stub
|
||||
|
A
|
B (Straight Stub)
|
C
|
D
|
|
| 02F2OD4 |
1/8″
|
1/4″ Dia.
|
43mm
|
12mm
|
| 02F4OD6 |
1/4″
|
3/8″ Dia.
|
45mm
|
12mm
|
