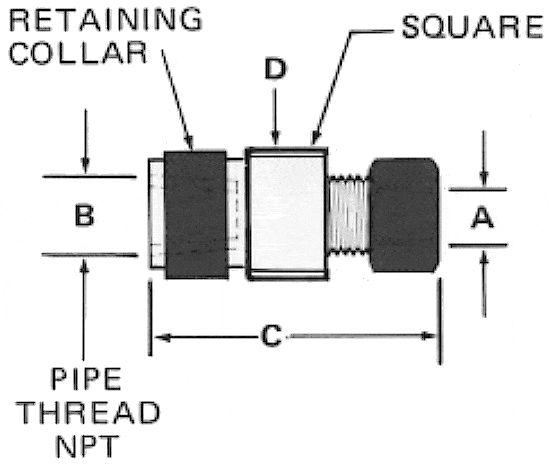

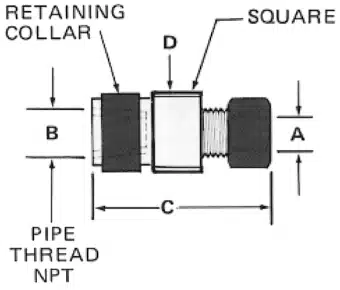

13 – Straight Female Connector
|
FRACTIONAL
|
||||
|
PART
NO. |
TUBE
O.D. “A” |
PIPE
THREAD NPT “B” |
“C”
|
SQUARE
“D” |
|
13F22
|
1/8″
|
1/8″
|
1.32″
|
.62″
|
|
13F32
|
3/16
|
1/8
|
1.32
|
.62
|
|
13F42
|
1/4
|
1/8
|
1.44
|
.62
|
|
13F52
|
5/16
|
1/8
|
1.44
|
.62
|
|
13F44
|
1/4
|
1/4
|
1.57
|
.75
|
|
13F54
|
5/16
|
1/4
|
1.57
|
.75
|
|
13F64
|
3/8
|
1/4
|
1.67
|
.75
|
|
13F66
|
3/8
|
3/8
|
1.67
|
1.00
|
|
13F86
|
1/2
|
3/8
|
1.75
|
1.00
|
|
13F88
|
1/2
|
1/2
|
1.90
|
1.25
|
|
13F1212
|
3/4
|
3/4
|
2.45
|
1.37
|
|
13F1616
|
1
|
1
|
2.55
|
1.75
|
|
METRIC
|
||||
|
PART NO. |
TUBE O.D. “A” |
PIPE
THREAD NPT “B” |
“C” |
SQUARE |
|
13M32
|
3mm
|
1/8″
|
34mm
|
16mm
|
|
13M42
|
4
|
1/8
|
34
|
16
|
|
13M62
|
6
|
1/8
|
37
|
16
|
|
13M82
|
8
|
1/8
|
37
|
16
|
|
13M64
|
6
|
1/4
|
40
|
19
|
|
13M84
|
8
|
1/4
|
40
|
19
|
|
13M104
|
10
|
1/4
|
42
|
19
|
|
13M106
|
10
|
3/8
|
42
|
25
|
|
13M126
|
12
|
3/8
|
44
|
25
|
|
13M128
|
12
|
1/2
|
48
|
32
|
|
13M1912
|
19
|
3/4
|
63
|
35
|
|
13M2616
|
26
|
1
|
66
|
45
|
