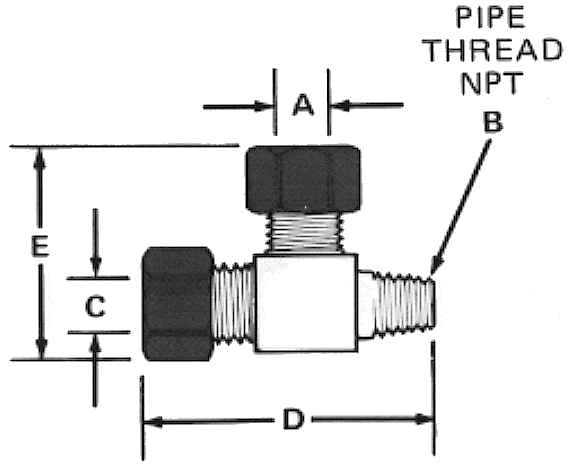

16 – Male Run Tee
|
FRACTIONAL
|
||||
|
PART
NO. |
TUBE O.D.
“A” & “C” |
PIPE THREAD
NPT “B” |
“D”
|
“E”
|
|
16F222
|
1/8″
|
1/8″
|
1.50″
|
1.02″
|
|
16F323
|
3/16
|
1/8
|
1.50
|
1.02
|
|
16F424
|
1/4
|
1/8
|
1.60
|
1.14
|
|
16F444
|
1/4
|
1/4
|
1.82
|
1.20
|
|
16F545
|
5/16
|
1/4
|
1.82
|
1.20
|
|
16F646
|
3/8
|
1/4
|
2.04
|
1.44
|
|
16F666
|
3/8
|
3/8
|
2.14
|
1.44
|
|
16F868
|
1/2
|
3/8
|
2.40
|
1.62
|
|
16F888
|
1/2
|
1/2
|
2.48
|
1.72
|
|
16F121212
|
3/4
|
3/4
|
3.54
|
2.37
|
|
16F161616
|
1
|
1
|
3.96
|
2.65
|
|
METRIC
|
||||
|
PART
NO. |
TUBE O.D.
“A” & “C” |
PIPE THREAD
NPT “B” |
“D”
|
“E”
|
|
16M323
|
3mm
|
1/8″
|
38mm
|
26mm
|
|
16M424
|
4
|
1/8
|
38
|
26
|
|
16M626
|
6
|
1/8
|
41
|
29
|
|
16M646
|
6
|
1/4
|
46
|
30
|
|
16M848
|
8
|
1/4
|
46
|
30
|
|
16M10410
|
10
|
1/4
|
52
|
37
|
|
16M10610
|
10
|
3/8
|
54
|
37
|
|
16M12612
|
12
|
3/8
|
61
|
41
|
|
16M12812
|
12
|
1/2
|
63
|
44
|
|
16M191219
|
19
|
3/4
|
90
|
65
|
|
16M261626
|
26
|
1
|
100
|
71
|
