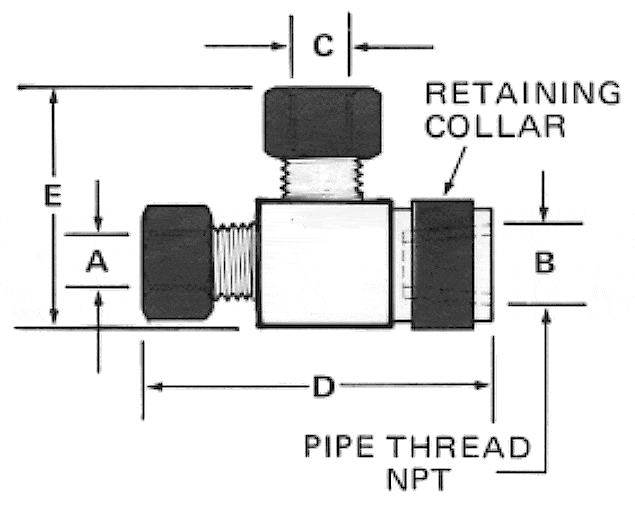

15 – Female Run Tee
|
FRACTIONAL
|
||||
|
PART
NO. |
TUBE O.D.
“A” & “C” |
PIPE THREAD
NPT “B” |
“D”
|
“E”
|
|
15F222
|
1/8″
|
1/8″
|
1.54″
|
1.15″
|
|
15F323
|
3/16
|
1/8
|
1.54
|
1.15
|
|
15F424
|
1/4
|
1/8
|
1.66
|
1.27
|
|
15F444
|
1/4
|
1/4
|
1.66
|
1.42
|
|
15F545
|
5/16
|
1/4
|
1.66
|
1.42
|
|
15F646
|
3/8
|
1/4
|
1.94
|
1.52
|
|
15F666
|
3/8
|
3/8
|
1.94
|
1.77
|
|
15F868
|
1/2
|
3/8
|
2.15
|
1.85
|
|
15F888
|
1/2
|
1/2
|
2.30
|
2.10
|
|
15F121212
|
3/4
|
3/4
|
3.25
|
2.67
|
|
15F161616
|
1
|
1
|
3.60
|
3.05
|
|
METRIC
|
||||
|
PART
NO. |
TUBE O.D.
“A” & “C” |
PIPE THREAD
NPT “B” |
“D”
|
“E”
|
|
15M323
|
3mm
|
1/8″
|
39mm
|
29mm
|
|
15M424
|
4
|
1/8
|
39
|
29
|
|
15M626
|
6
|
1/8
|
42
|
32
|
|
15M646
|
6
|
1/4
|
42
|
36
|
|
15M848
|
8
|
1/4
|
42
|
36
|
|
15M10410
|
10
|
1/4
|
49
|
39
|
|
15M10610
|
10
|
3/8
|
49
|
45
|
|
15M12612
|
12
|
3/8
|
55
|
47
|
|
15M12812
|
12
|
1/2
|
58
|
53
|
|
15M191219
|
19
|
3/4
|
85
|
69
|
|
15M261626
|
26
|
1
|
96
|
77
|
