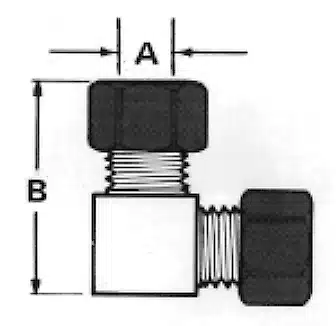

03 – Elbow Union
|
Fractional
|
||
|
Part No.
|
Tube O.D.
“A” |
“B”
|
|
03F2 |
1/8″ |
.95″ |
|
03F3 |
3/16 |
.95 |
|
03F4 |
1/4 |
1.14 |
|
03F5 |
5/16 |
1.14 |
|
03F6 |
3/8 |
1.44 |
|
03F8 |
1/2 |
1.60 |
|
03F10 |
5/8 |
2.10 |
|
03F12 |
3/4 |
2.55 |
|
03F16 |
1 |
2.80 |
|
Metric
|
||
|
Part No.
|
Tube O.D.
“A” (Type) |
“B” (Type)
|
|
03M3 |
3mm |
24mm |
|
03M4 |
4 |
24 |
|
03M6 |
6 |
29 |
|
03M8 |
8 |
29 |
|
03M10 |
10 |
37 |
|
03M12 |
12 |
40 |
|
03M14 |
14 |
48 |
|
03M19 |
19 |
65 |
|
03M26 |
26 |
71 |
|
03 Series: Compression Fittings With Straight Stub
|
|||
|
A
|
B
|
C (straight stub)
|
|
| 03 F4 OD4 |
1/4″
|
1 1/4″
|
1/4″ Dia.
|
