12 – Elbow Male Connector

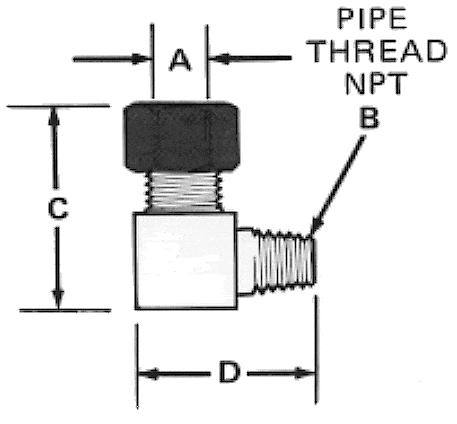

Elbow Male Connector

FRACTIONAL

PART
NO.

TUBE
O.D.
“A”

PIPE
THREAD
NPT
“B”

“C”

“D”

12F22

1/8″

1/8″

1.02″

.95″

12F32

3/16

1/8

1.02

.95

12F42

1/4

1/8

1.14

.95

12F52

5/16

1/8

1.20

1.00

12F44

1/4

1/4

1.20

1.12

12F54

5/16

1/4

1.20

1.12

12F64

3/8

1/4

1.44

1.27

12F66

3/8

3/8

1.44

1.37

12F86

1/2

3/8

1.62

1.47

12F88

1/2

1/2

1.72

1.70

12F1212

3/4

3/4

2.57

2.24

12F1616

1

1

2.82

2.64
METRIC

PART
NO.

TUBE
O.D.
“A”

PIPE
THREAD
NPT
“B”

“C”

“D”

12M32

3mm

1/8″

26mm

24mm

12M42

4

1/8

26

24

12M62

6

1/8

29

24

12M82

8

1/8

30

25

12M64

6

1/4

30

28

12M84

8

1/4

30

28

12M104

10

1/4

37

32

12M106

10

3/8

37

35

12M126

12

3/8

41

38

12M128

12

1/2

44

43

12M1912

19

3/4

65

57

12M2616

26

1

72

67
