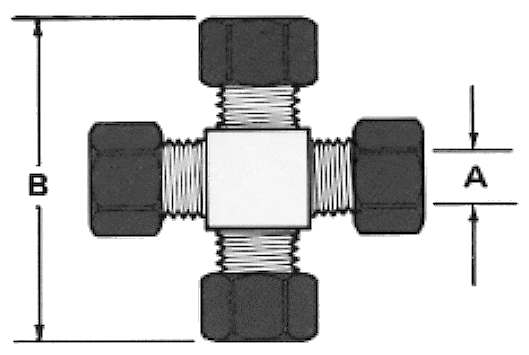

06 – Cross Union
|
Fractional
|
||
|
PART NO. |
TUBE O.D. “A” (Typ.) |
“B” (Typ.) |
|
06F2 |
1/8″ |
1.50″ |
|
06F3 |
3/16 |
1.50 |
|
06F4 |
1/4 |
1.80 |
|
06F5 |
5/16 |
1.97 |
|
06F6 |
3/8 |
2.19 |
|
06F8 |
1/2 |
2.45 |
|
06F10 |
5/8 |
3.20 |
|
06F12 |
3/4 |
3.90 |
|
06F16 |
1 |
4.12 |
|
Metric
|
||
|
PART NO. |
TUBE O.D. “A” (Typ.) |
“B” (Typ.) |
|
06M3 |
3mm |
38mm |
|
06M4 |
4 |
38 |
|
06M6 |
6 |
46 |
|
06M8 |
8 |
50 |
|
06M10 |
10 |
56 |
|
06M12 |
12 |
62 |
|
06M14 |
14 |
73 |
|
06M19 |
19 |
98 |
|
06M26 |
26 |
104 |
