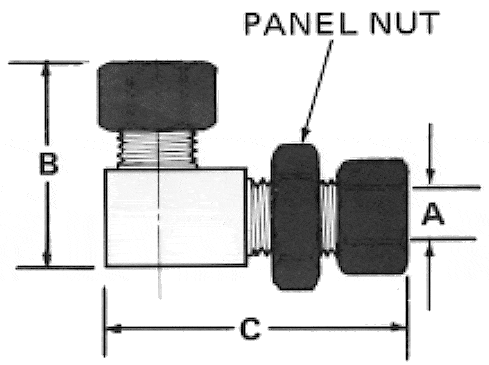

09 – Bulkhead Elbow Union
|
FRACTIONAL
|
||||
|
PART
NO. |
TUBE O.D.
“A” (Typ.) |
“B” |
“C” |
PANEL
HOLE DIA. |
|
09F2
|
1/8″
|
1.02″
|
1.62″
|
21/64″
|
|
09F3
|
3/16
|
1.02
|
1.62
|
25/64
|
|
09F4
|
1/4
|
1.24
|
1.76
|
29/64
|
|
09F5
|
5/16
|
1.27
|
1.95
|
33/64
|
|
09F6
|
3/8
|
1.52
|
2.28
|
21/32
|
|
09F8
|
1/2
|
1.80
|
2.32
|
25/32
|
|
09F10
|
5/8
|
2.15
|
2.80
|
1-1/32
|
|
09F12
|
3/4
|
2.52
|
3.30
|
1-9/32
|
|
09F16
|
1
|
2.80
|
3.50
|
1-9/16
|
|
METRIC
|
||||
|
PART
NO. |
TUBE O.D.
“A” (Typ.) |
“B” |
“C” |
PANEL
HOLE DIA. |
|
09M3
|
3mm
|
26mm
|
41mm
|
8.5mm
|
|
09M4
|
4
|
26
|
41
|
10.5
|
|
09M6
|
6
|
32
|
45
|
12
|
|
09M8
|
8
|
32
|
50
|
13.5
|
|
09M10
|
10
|
38
|
58
|
16.5
|
|
09M12
|
12
|
46
|
59
|
20
|
|
09M14
|
14
|
48
|
66
|
23
|
|
09M19
|
19
|
64
|
84
|
32.5
|
|
09M26
|
26
|
71
|
89
|
39.5
|
