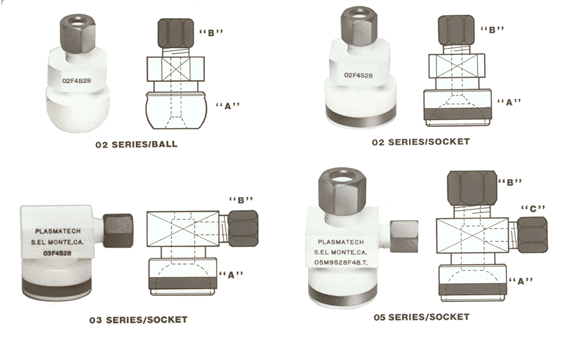

PTFE Fittings For Balljoint Connections Series 02, 03 and 05
Plasmatech PTFE fittings for balljoint connections are precision machined from virgin PTFE. Fitting nuts are injection molded of Ryton R-4 and the retaining collar, used on the socket versions, is machined from aluminum tubing and anodized. All sizes and styles are designed for use with Thomas pinch-clamps or equivalent.
Pinch Clamps for above are available from Plasmatech.
- = Socket or ball connection. Dimension is expressed in “mm” such as the large number of a balljoint designation (28/15 or 18/9).
- = Plasmatech tube fitting for tube O.D. as shown in “B” column.
- = Plasmatech tube fitting on branch connection for tube O.D. as shown in “C” column.
|
02 Series
|
|
03 and 05 Series
|
|||||
|
Part No.
|
“A”
|
“B”
|
Part No. |
“A”
|
“B”
|
“C”
|
|
|
02 F4 B18
|
18
|
1/4″
|
03 F4 S12 |
12
|
1/4″
|
||
|
02 F4 B28
|
28
|
1/4″
|
03 F4 S18 |
18
|
1/4″
|
||
| 02 F8 B28 |
28
|
1/2″
|
03 F6 S18 |
18
|
3/8″
|
||
| 02 F4 B35 |
35
|
1/4″
|
03 F4 S28 |
28
|
1/4″
|
||
| 02 F6 B35 |
35
|
3/8″
|
|||||
| 02 F8 B35 |
35
|
1/2″
|
03 F6 S28 |
28
|
3/8″
|
||
|
02 F4 S18
|
18
|
1/4″
|
03 F8 S28 |
28
|
1/2″
|
||
|
02 F6 S18
|
18
|
3/8″
|
|||||
|
02 F4 S28
|
28
|
1/4″
|
05 F6 S28 F4 B.T. |
28
|
3/8″
|
1/4″
|
|
|
02 F6 S28
|
28
|
3/8″
|
05 F4 S35 F4 B.T. |
35
|
1/4″
|
1/4″
|
|
|
02 F8 S28
|
28
|
1/2″
|
05 M6 S28 F4 B.T. |
28
|
6mm
|
1/4″
|
|
|
02 F4 S35
|
35
|
1/4″
|
05 M9 S28 F4 B.T. |
28
|
9mm
|
1/4″
|
|
|
02 F6 S35
|
35
|
3/8″
|
05 M10 S28 F4 B.T. |
28
|
10mm
|
1/4″
|
|
| 02 F8 S35 |
35
|
1/2″
|
05 M12 S28 F4 B.T. |
28
|
12mm
|
1/4″
|
|
| 02 F4 S50 |
50
|
1/4″
|
05 M9 S35 F4 B.T. |
35
|
9mm
|
1/4″
|
|
| 02 F6 S50 |
50
|
3/8″
|
05 M10 S35 F4 B.T. |
35
|
10mm
|
1/4″
|
|
| 02 F8 S50 |
50
|
1/2″
|
05 M12 S35 F4 B.T. |
35
|
12mm
|
1/4″
|
|
| 02 M8 S28 |
28
|
8mm
|
|||||
| 02 M10 S28 B.T. |
28
|
10mm
|
|||||
| 02 M12 S28 B.T. |
28
|
12mm
|
|||||
